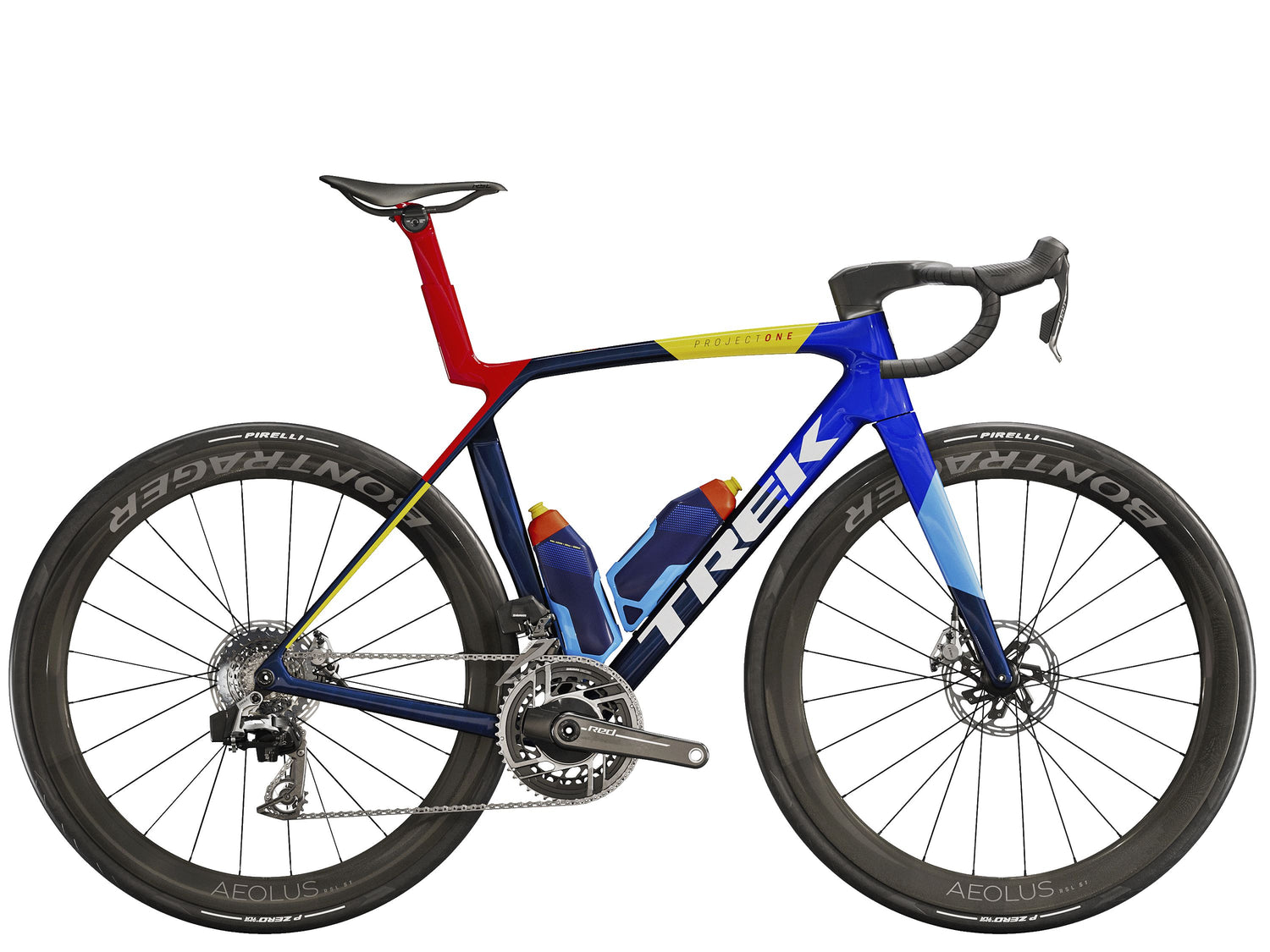

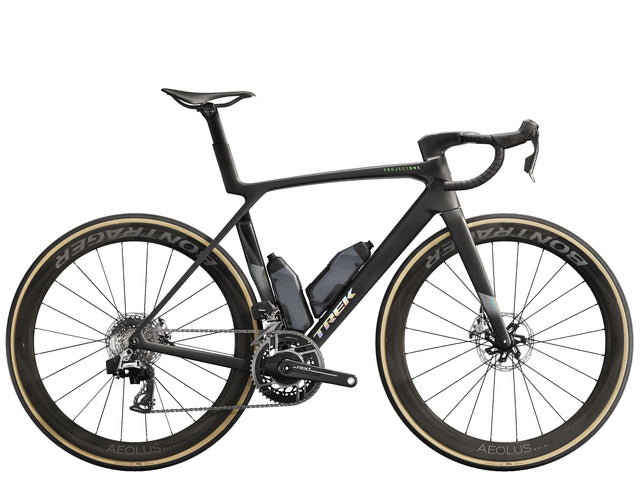

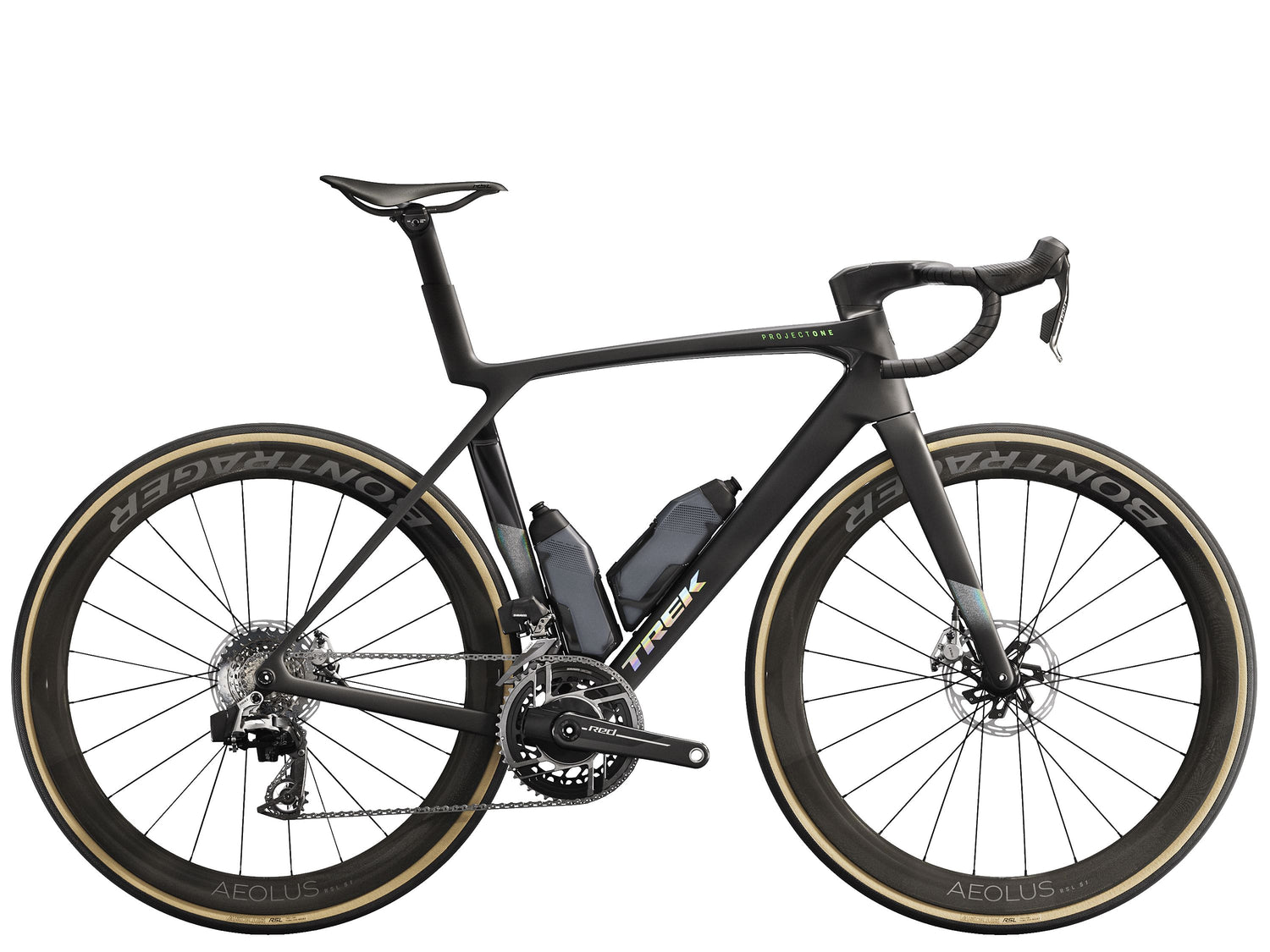

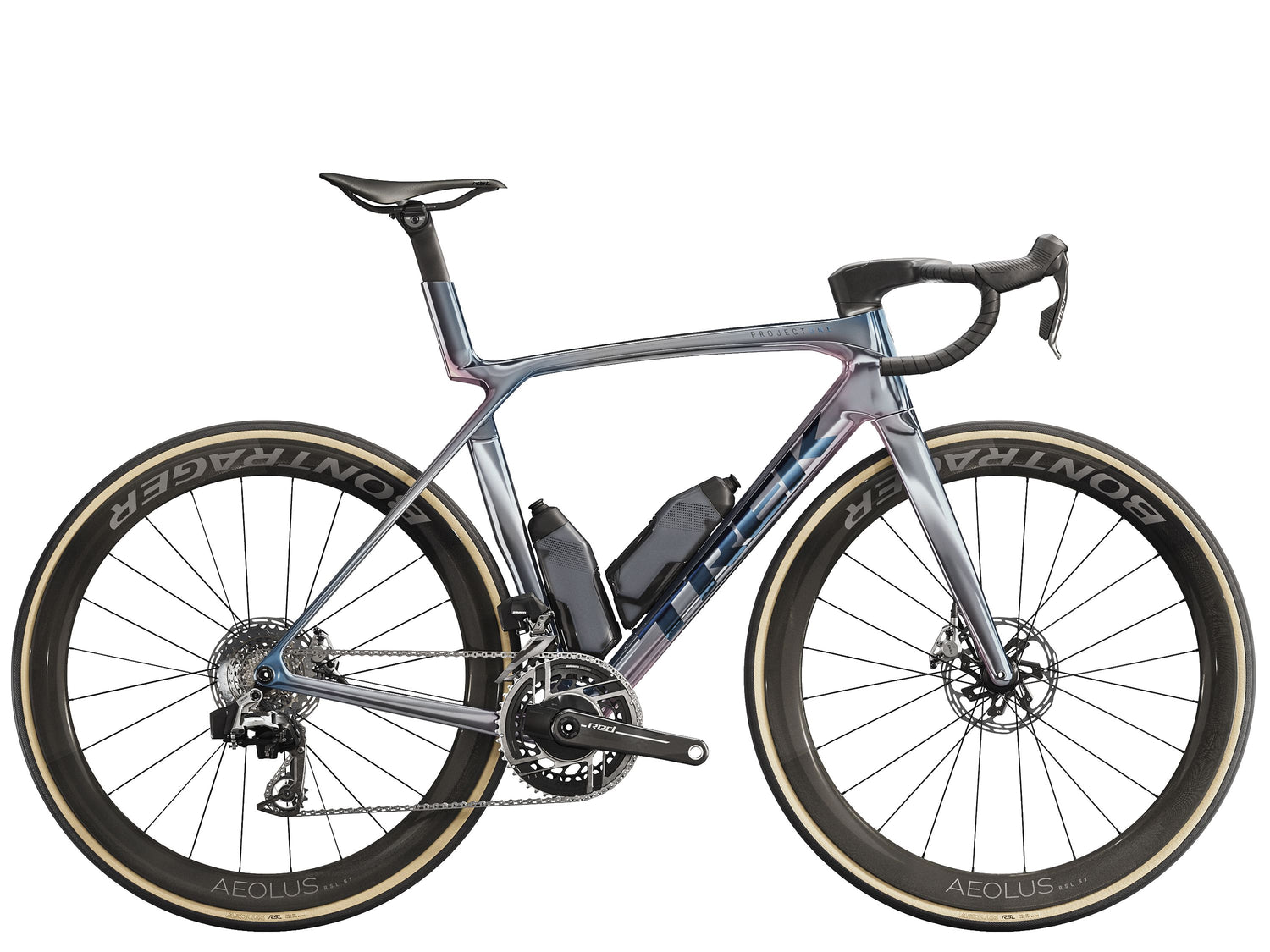

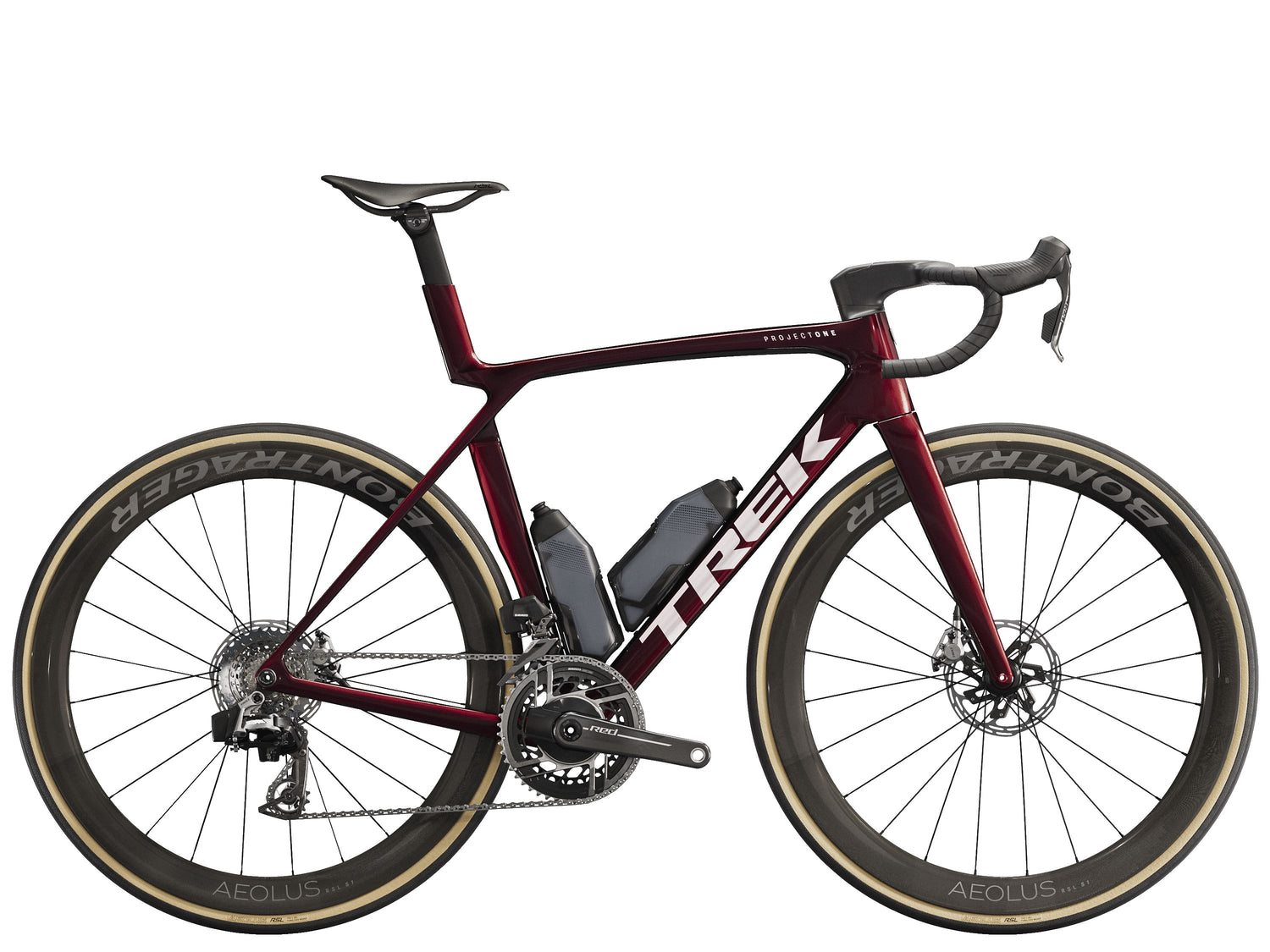

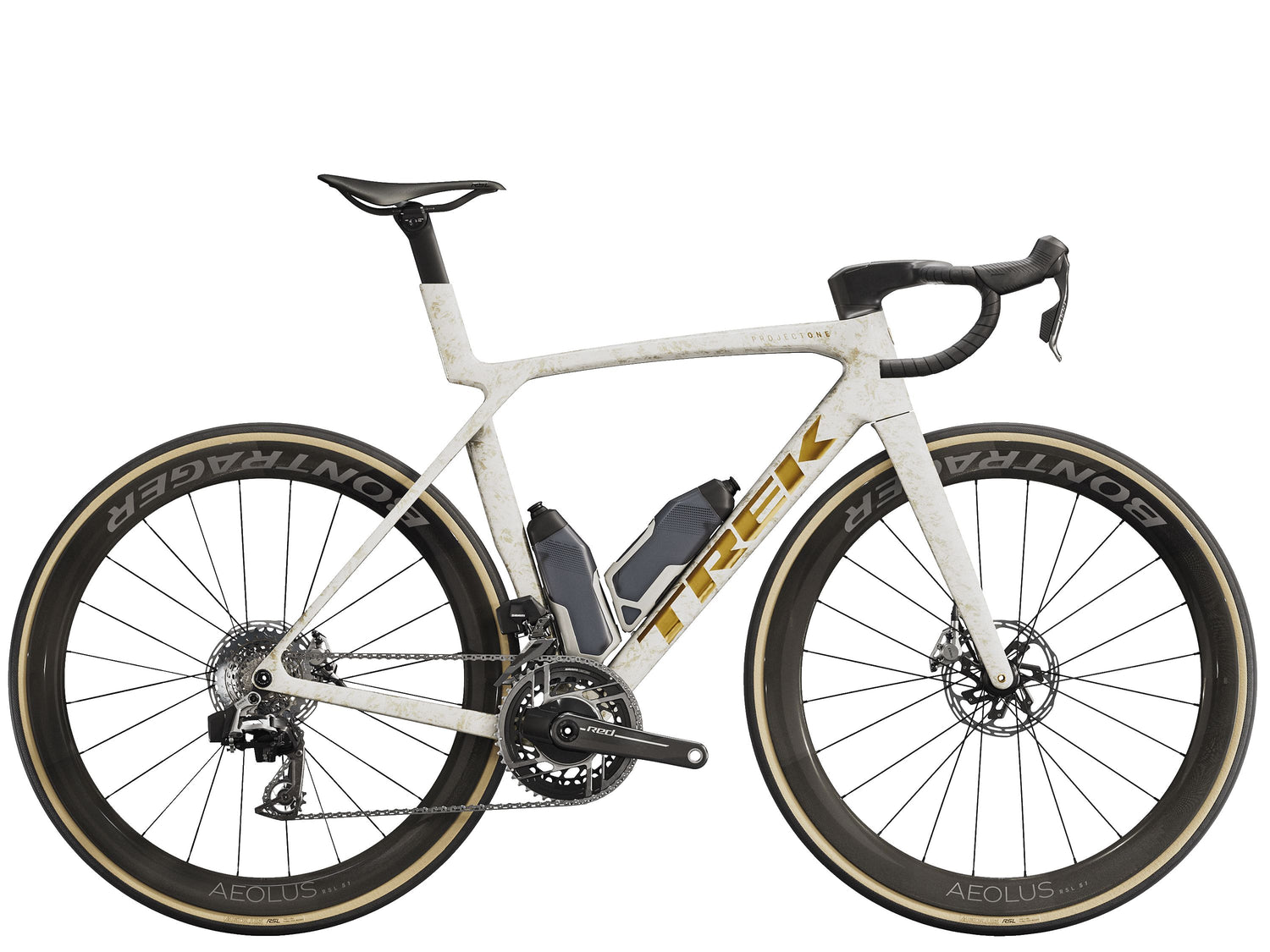

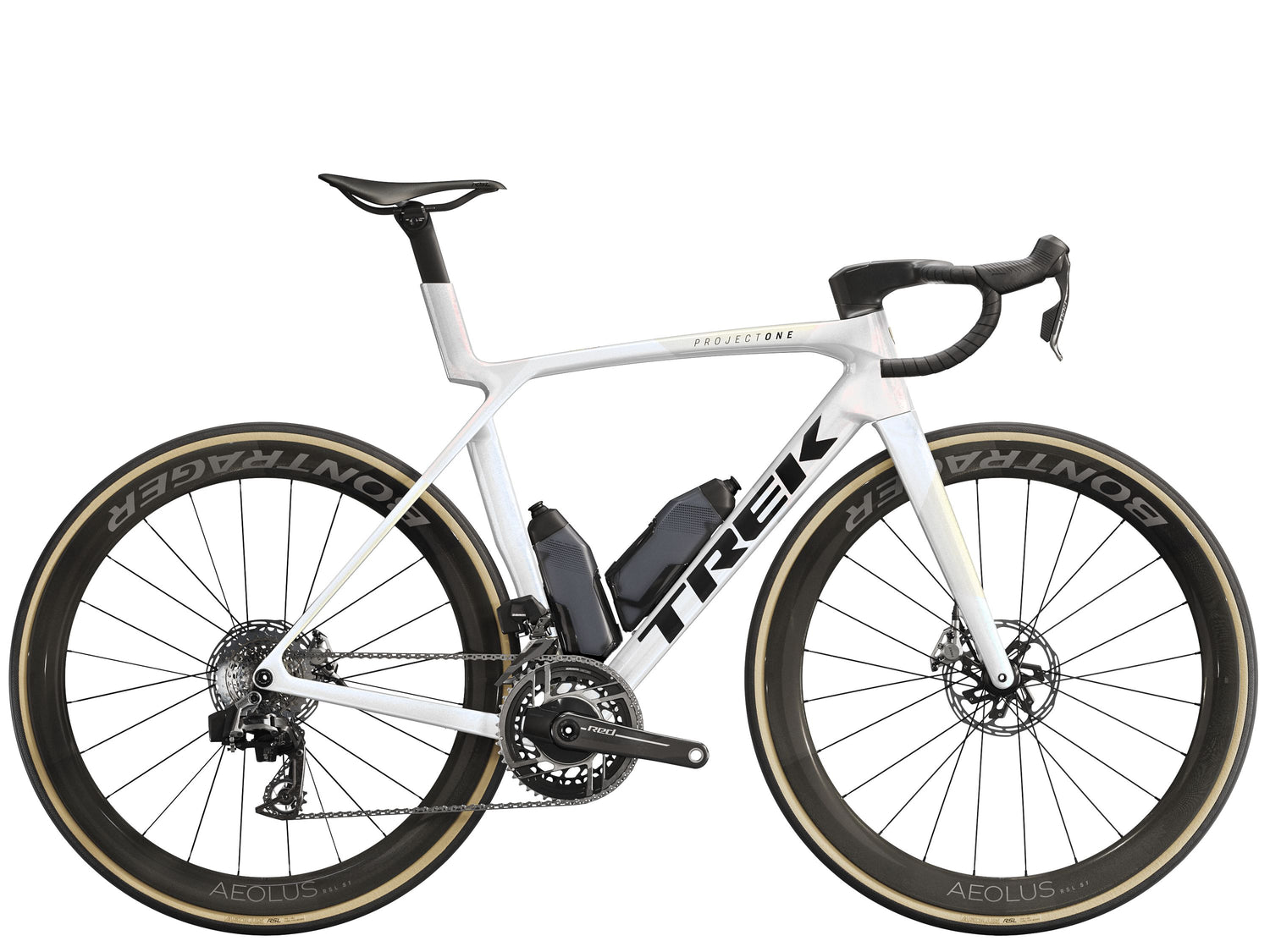

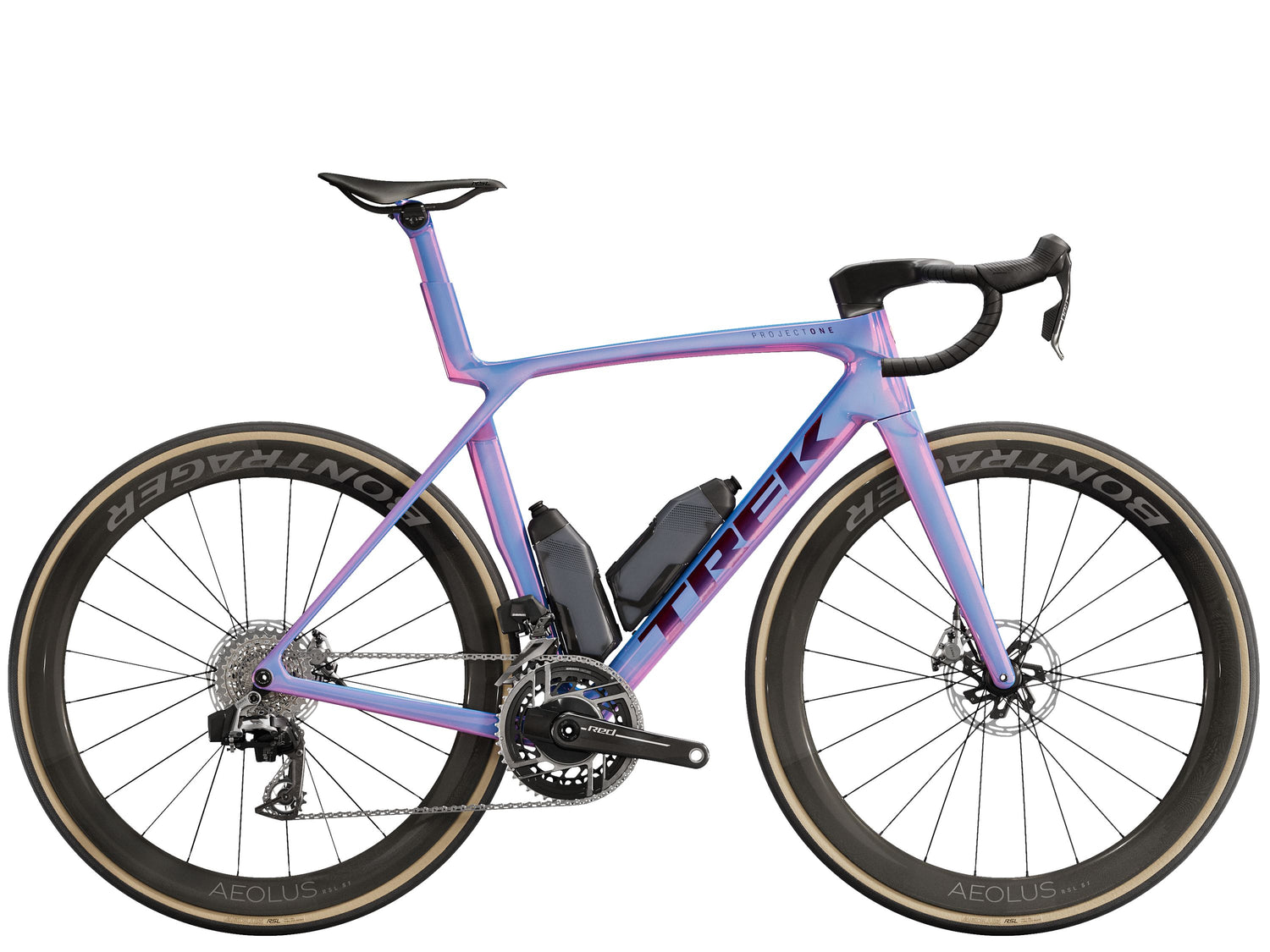

Trek Madone SLR 9 AXS Gen 8

Madone SLR 9 AXS Gen 8 is built for dominating the roads with equal parts light weight and aerodynamic speed. It's crafted from our highest-level 900 Series OCLV Carbon that's not only insanely light, but delivers aerodynamic shapes for crushing descents and straightaways. This build comes ready to win with a top-level SRAM RED AXS E1 drivetrain with a power meter, Bontrager Aeolus RSL 51 carbon wheels, a Trek Aero RSL one-piece carbon bar/stem, and RSL Aero Bottles and Cages for more drag reduction.

Our lightest Madone Disc ever

New light and fast aero tube shaping paired with our best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Émonda f/s.

Redefines what fast looks like

Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.



80% more vertically compliant IsoFlow

We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.

Designed for the world’s best

Madone SLR Gen 8 is raced and loved by Lidl-Trek's fastest sprinters and climbers and the only bike they need for race day.

One-piece Aero RSL bar/stem

A new one-piece bar/stem is lighter, more aeryodynamic, and more ergonomic than the previous version. Plus, the hoods are 3cm narrower than the drops so you can adjust your positioning to prioritize aerodynamics (in the hoods) or power (in the drops).

RSL Aero Bottles and Cages

Included RSL Aero Bottles and Cages were specifically designed along with the whole rider system to help make Madone even faster.

Fork	Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
Wheel Front	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle
Wheel Rear	Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru axle
Tire	Bontrager Aeolus RSL RD, Tubeless Ready, cotton construction, aramid bead, 170 tpi, 700x28mm
Tire Part	Bontrager TLR sealant, 6oz
Skewer Front	Bontrager Switch chamfered thru axle
Skewer Rear	Bontrager Switch chamfered thru axle, removable lever
Shifter	SRAM RED AXS E1
Front Derailleur	SRAM RED AXS E1, braze-on
Rear Derailleur	SRAM RED AXS E1, 36T max cog
Crank	SRAM RED AXS E1, power meter, 48/35, DUB, 165mm length
Bottom Bracket	SRAM DUB, T47 threaded, internal bearing
Cassette	SRAM RED XG-1290 E1, 10-33, 12 speed
Chain	SRAM RED E1,12 speed
Saddle	Aeolus RSL, carbon rails, 155mm width
Seatpost	Madone aero carbon seatpost, 0mm offset, short length
Handlebar	Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 35cm control width, 38cm drop width, 80mm stem length
Battery	SRAM AXS battery pack (with charger)

Geometry Chart

B B Drop	7.2
Chainstay Length	41
Eff Top Tube	51.7
Frame Reach	37
Frame Size Letter	XS
Frame Stack	50.7
Head Angle	71.6°
Head Tube Length	10
Offset	5
Saddle Rail Height Max Short	61.2
Saddle Rail Height Max Tall	65.4
Saddle Rail Height Min Short	54.9
Saddle Rail Height Min Tall	59.2
Seat Tube	40.4
Seat Tube Angle	73.8°
Standover	70.4
Trail	6.1
Wheelbase	97.1
Wheel Size	700c
