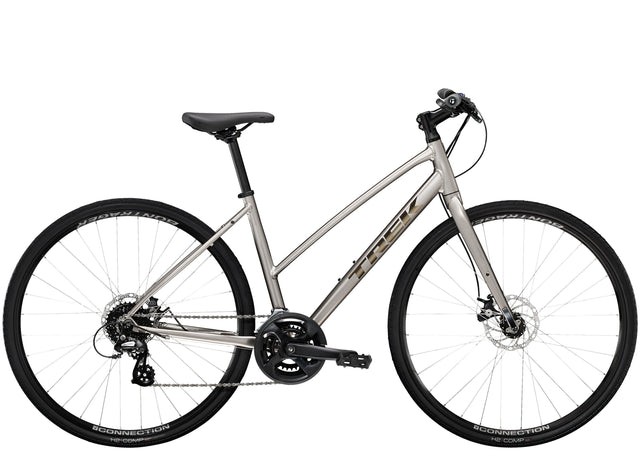

Trek FX 1 Disc Midstep Gen 3

FX 1 Disc Mid-step is a hybrid bike with a classic stepthrough frame design that's easier to mount and dismount and modern disc brakes that give you extra stopping power in all weather conditions. It's perfect for anyone looking to get out more, ride as a family, do a bit of exercise, or commute to work on a versatile bike backed by a lifetime warranty.

• It's versatile and does whatever you want it to do, whether that's riding for fitness, commuting, or cruising to the farmer's market to pick up groceries
• The stepthrough frame makes it easy to hop on and go, and hop off when your ride is over
• More confident braking means bad weather doesn't have to keep you from enjoying your ride
• You can pair FX with your smartphone and send your ride data to your favorite fitness app when you add DuoTrap S
• Like every Trek hybrid, it's backed by a lifetime warranty and supported by a wide network of retail partners

Make it your own

Customize your bike with fenders, racks, bottle cages, and more to make it your own.

Upgrade your pedals and love your bike more

Pedals are two of the five touchpoints that connect you with your bike, and even though this bike comes with a pair, upgrading to pedals that boost control and grip will greatly improve your ride. See the pedal guide and find the best pedals for your riding style. We recommend flat pedals for simple versatility.

Frame	Alpha Gold Aluminum, stagger top tube, DuoTrap S compatible, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Fork	FX Steel, flat mount disc, rack mounts, 405mm axle-to-crown, ThruSkew 5mm QR
Tire	Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm
Hub Front	Formula DC-20, alloy, 6-bolt, 5x100mm QR
Hub Rear	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR
Rim	Bontrager Connection, double-wall, 32-hole, 20mm width, schrader valve
Skewer Front	130x5mm QR, ThruSkew
Skewer Rear	152x5mm QR
Shifter	Shimano EF500, 8 speed // Shimano EF500, 8 speed
Front Derailleur	Shimano Tourney TY710, 34.9mm clamp, top swing, dual pull
Rear Derailleur	Shimano Altus M310
Crank	Forged alloy, 46/30, chainguard, 170mm length
Bottom Bracket	Sealed cartridge, 68mm
Cassette	Shimano HG31, 11-32, 8 speed
Chain	KMC Z8.3
Brake	Tektro MD-U310 mechanical disc, flat mount, 160mm rotor // Tektro MD-U310 mechanical disc, flat mount, 160mm rotor
Pedal	Wellgo nylon platform
Saddle	Bontrager Sport Women's
Seatpost	Bontrager alloy, 27.2mm, 12mm offset, 330mm length
Handlebar	Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width
Stem	Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length
Headset	1 1/8'' steel threadless
Grips	Bontrager Satellite

Geometry Chart

B B Drop	6.5
B B Height	29.6
Chainstay Length	45
Eff Top Tube	53.7
Frame Reach	38.4
Frame Size Letter	S
Frame Stack	55.4
Head Angle	70.5°
Head Tube Length	13
Offset	5
Seat Tube	38.1
Seat Tube Angle	74.5°
Standover	71.1
Trail	7.5
Wheelbase	105.5
Wheel Size	700c

Color

METALLIC GUNMETAL
