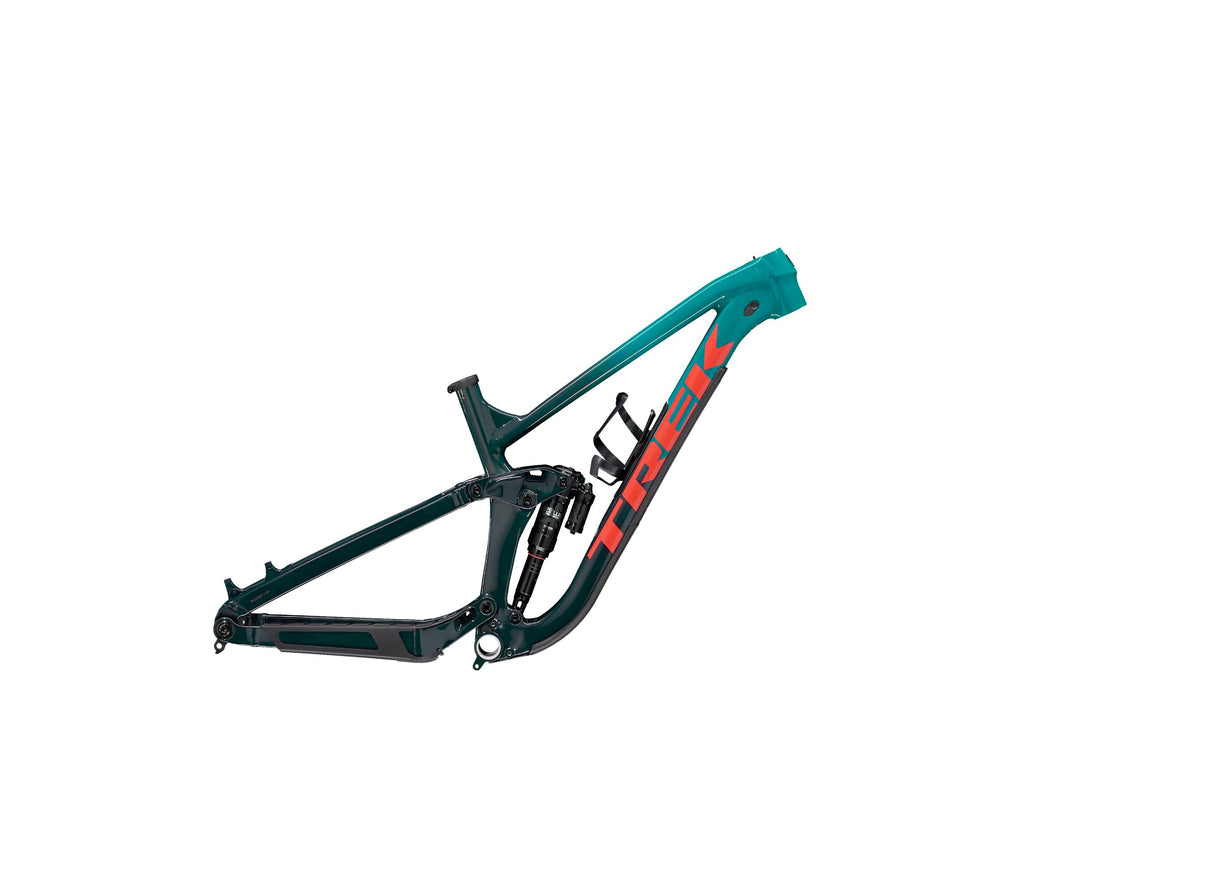

Slash AL F/S XL 29 Teal to Nautical Navy Fade

Slash AL Frameset is the perfect platform for a fast 29er enduro or trail bike build. With a burly Alpha Aluminum frame, Trek's exclusive RE:aktiv shock, and a Knock Block 2.0 integrated headset, you have all the bones for a mountain bike that can handle everything from the biggest all-mountain descents to the most competitive enduro races.

• It's equally at home between the tape and in the rugged wild—Yes, Slash is a race bike, but it's ridiculously fun on gnarly trail rides, too
• A large internal storage compartment in the down tube lets you stow tools and gear
• Mino Link lets you adjust the geometry, so you get both an enduro race bike and an ultra-capable trail bike in one
• New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius

Internal Storage

Internal frame storage makes it easy to ditch the pack and still carry your ride essentials.

Active Braking Pivot

Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Complete frame protection

Replaceable down tube guards protect the underside of your frame from rock strikes, trail debris, and janky shuttle vehicles so you can forget about damage worries and focus on blasting the next run.

Frame	Alpha Platinum Aluminum, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, downtube guard, shuttle guard, threaded BB, ISCG 05, 34.9mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160mm travel
Shock	RockShox Super Deluxe Select+ RT, 230mm x 62.5mm
Skewer Rear	Bontrager Switch thru axle, removable lever
Stem	Bontrager Elite, 35mm, 0 degree, 45mm length

Geometry Chart

B B Drop	2.2
B B Height	35.2
Chainstay Length	43.5
Eff Seat Tube Angle	76.1°
Eff Top Tube	68.3
Frame Reach	52.1
Frame Size Letter	XL
Frame Size Number	21.5"
Frame Stack	65.4
Head Angle	64.6°
Head Tube Length	14
Offset	4.3
Position	High
Seat Tube	50
Seat Tube Angle	67.1°
Standover	78
Trail	13
Wheelbase	130.4
Wheel Size	29"
