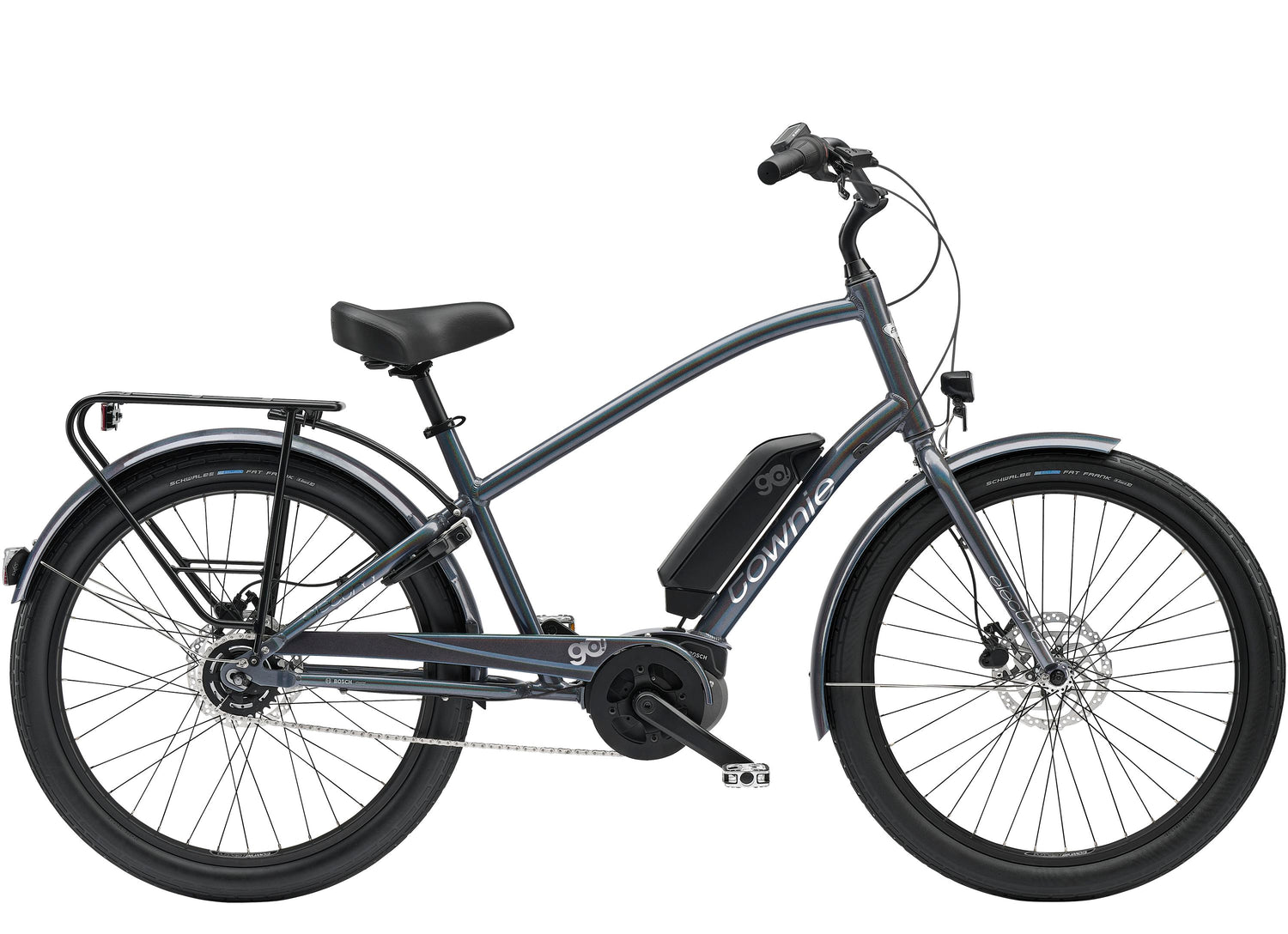

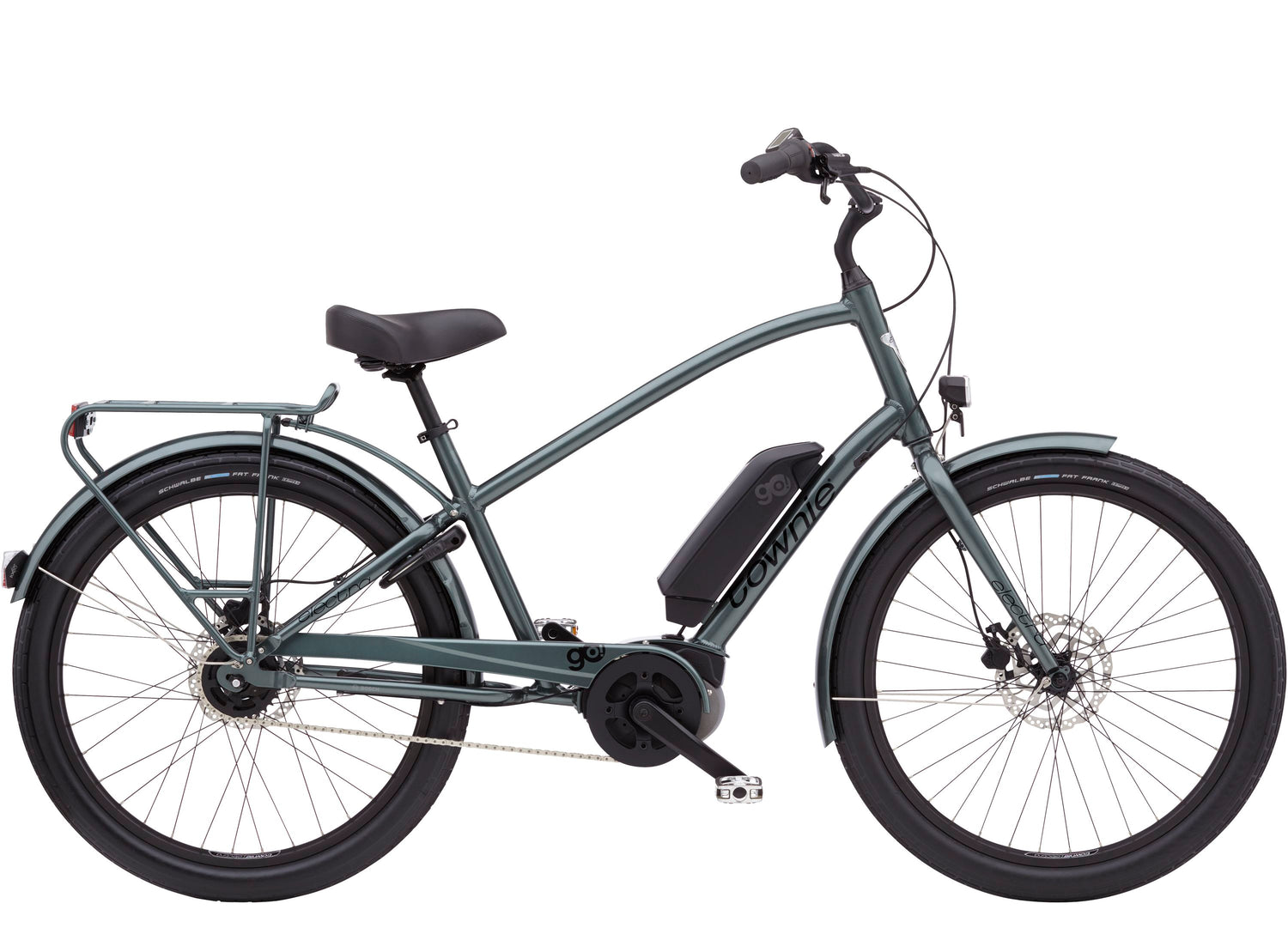

Electra Townie Go! 5i EQ Step-Over

Go to the market. Go to the beach. Go get coffee. The Townie® Go! 5i is an easy-to-use, fun-to-ride, pedal-assist e-bike with surprising power that’ll make you want to go forever. With the Bosch Active Line Plus System and Electra's Flat Foot Technology®, climb hills and shorten distances with ease. It’s impossible not to smile while riding a Townie Go!

• Class 1 electric bike with a pedal-assisted speed up to 20 mph.
• Up to a 70-mile range on a single charge.
• Tektro hydraulic disc brakes ensure reliable stopping power.
• Color-matched fenders keep you clean while front and rear LED lighting keep you safe.
• MIK rear rack compatibility makes it easy to click on and off bike accessories.
• Rely on a network of 3,000+ Electra retailers for service and support when you need it.

Build Your Bike

Did your dream bike just arrive at your doorstep? Ready to add the finishing touches? If so, you came to the right place. Please read your Quick Assembly Guide and click here to watch additional step-by-step instructions.

Compliant with leading safety regulations

The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.

Frame	6061-T6 aluminum with patented Flat Foot Technology®
Fork	Hi-ten steel unicrown, straight/tapered leg
Hub Front	Alloy low-flange w/CenterLock disc brake, 36h
Hub Rear	Shimano Nexus 5-speed internal w/center lock disc brake 36h
Skewer Front	100x5mm QR
Shifter	Shimano Nexus 5-speed twist w/optical display
Crank	ProWheel alloy, 170mm length
Cassette	Shimano 30t
Chain	KMC Z1EHX nickel plated
Brake	Tektro hydraulic disc brakes // Tektro hydraulic disc brakes
Brake Rotor	Shimano RT10, centerlock, 180mm
Pedal	Alloy platform w/non-slip rubber tread
Saddle	Ergonomic w/shock-absorbing elastomers
Seatpost	Alloy micro-adjust 27.2x400mm
Handlebar	Alloy custom bend 25.9'' width/4'' rise
Stem	Forged alloy 25.4mm quill, 80mm extension
Headset	1 1/8'' steel threaded/semi-integrated
Grips	Ergo-shaped hand-stitched leatherette
Light	Spanninga, LED, taillight // Spanninga, LED, headlight
Kickstand	Alloy double leg
Battery	Bosch PowerPack 400Wh
Motor	Bosch Active Plus, 250 watt, 50 Nm, 20mph or 32km/h
Charger	Bosch standard 4A, 100-240V

Geometry Chart

Frame Reach	31.6
Frame Size Number	26
Frame Stack	61.6
Head Angle	69.0°
Head Tube Length	23.7
Seat Tube	50.5
Seat Tube Angle	67.0°
Standover	73.3
Wheelbase	119.6
Wheel Size	26"

Size

26" WHEEL
