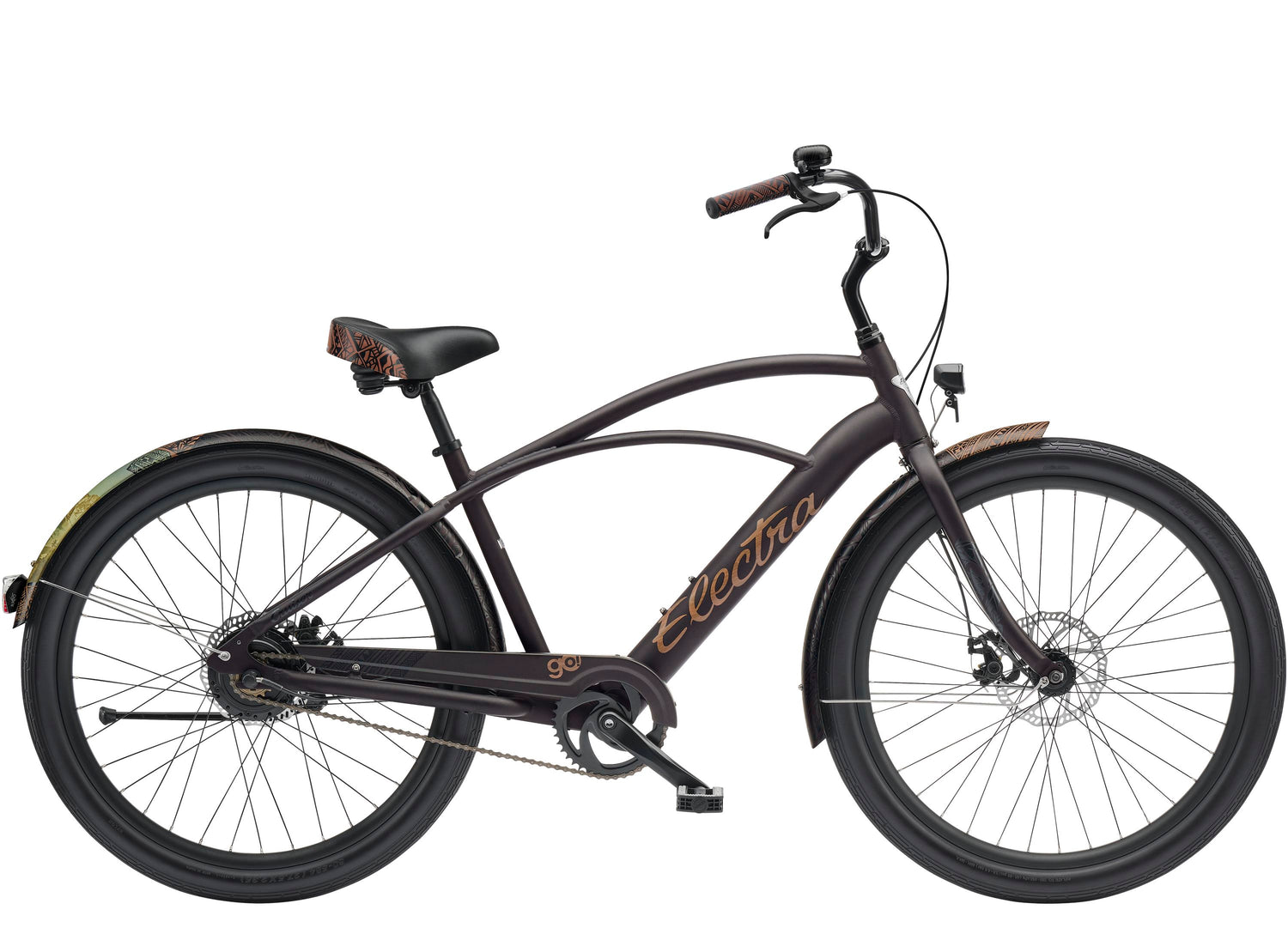

Kakau Cruiser Go! Step Over US M Matte Ember

Kākau Go! is an homage to the islands that make up Polynesia, the birthplace of surf. The Matte Ember frame, reminiscent of lava rock that can be found throughout the islands, is complimented by a tribal pattern inspired by the traditional tattoo art form, known as Kākau. A wood grain underlay throughout represents the Koa tree and wood used for early surfboards. Custom grips, saddle and bell complete this awesome e-bike.

• Comfortable cruising comes standard with Electra's Flat Foot Technology®.
• Class 1 electric bike with a pedal-assisted speed up to 20 mph.
• Up to a 40-mile range on a single charge.
• 250Wh rear hub motor delivers 40Nm of torque.
• Custom embossed saddle, grips and matching bell make this e-bike as unique as you.

Build Your Bike

Did your dream bike just arrive at your doorstep? Ready to add the finishing touches? If so, you came to the right place. Please read your Quick Assembly Guide and click here to watch additional step-by-step instructions.

Compliant with leading safety regulations

The e-systems on Trek and Electra e-bikes are third-party tested to meet the latest e-bike safety regulations, including the stringent UL 2849 certification — so all you have to worry about is where your e-bike will take you next.

Frame	6061-T6 aluminum with patented Flat Foot Technology®
Fork	Hi-ten steel unicrown, straight/tapered leg
Tire	27.5x2.35'' balloon
Hub Front	Alloy low-flange w/6-bolt disc, 36h, nutted
Hub Rear	Hyena hub motor w/6-bolt disc, 36h, nutted
Rim	Alloy double wall, 27.5''x36h // Alloy double wall, 27.5''x36h
Spokes	13g stainless steel, black
Crank	Forged alloy 170mm, 42t chainring
Bottom Bracket	Torque sensor, threaded, 122.5mm spindle
Cassette	16T freewheel
Chain	KMC S1
Brake	Mechanical disc, 180mm rotor
Brake Lever	Alloy, 3-finger
Pedal	Resin platform w/non-slip tread
Saddle	Electra custom Kakau Go!
Seatpost	Alloy 27.2×400mm
Seat Collar	Seat Collar, 31.8mm, Black
Handlebar	Electra café
Stem	Forged alloy 25.4mm quill, 80mm extension
Headset	1 1/8'' steel threaded
Grips	Electra hand-stitched
Light	Spanninga, Kendo XE, LED, headlight // Spanninga Pixeo, LED, taillight
Kickstand	Alloy, rear mount
Battery	250Wh, integrated in down tube
Charger	2A, 42V output, 100V-240V AC input

Geometry Chart

Frame Reach	39.4
Frame Stack	55.8
Head Angle	67.0°
Head Tube Length	17
Seat Tube	47.8
Seat Tube Angle	67.0°
Standover	76.2
Wheelbase	119.5
Wheel Size	27.5"
